Bottom Spraying 0.6Mpa Fluid Bed Granulator

Name: Bottom Spraying 06Mpa Fluid Bed Granulator
Brand: YIGAN
Price: 1 USD

Quality Bottom Spraying 0.6Mpa Fluid Bed Granulator for sale

Brand Name : YIGAN

Model Number : FLP

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Supply Ability : 20 sets per month

Delivery Time : 20 working days after received your payment

Packaging Details : Packed in film firstly, and then reinforced with wooden case for outer packing

Product Name : Fluid bed granulator/dryer equipment

Application : Indoor

Spraying mode : Bottom spraying

Processing object : granules coating

Feed mode : By mono pump

Function : Mixing,drying,coating

Standard : CE/ROHS/FCC/SGS

Contact Now

wholesale Fluid Bed granulator and dryer equipment with CE certificate

Application

wholesale Fluid Bed granulator and dryer equipment with CE certificate is successfully designed on the basis of absorption,digestion of foregin advanced technologies and years of Jingong process experience,this equipment is a integration of top spray,bottom spray and tangential spray system can carry out drying,granulating,pelleting and coating, which is designed and manufactured completely comply with GMP and FDA standards, this kind of equipment is also widely adopted in pharmaceutical,chemical,food and feed industries.

Features

1. adopting automatic PLC control and graphical HMI, operation process can be setted and recorded and printed.

2. high effcient with high uniform product output

3. equiped with three grade filter systems for inlet air and high precision temperature auto PID control with hot and cold air door. exhaust air handler unit is for option.

4. lifting and turn-over discharging or vaccum discharging is optional to meet dust free production requirement of current GMP

5. 2bar,10bar,12bar anti-explosion grade are optional to secure the safty of people,equipment and environment.

6. dehumidification system and WIP online cleaning system are for option

7. easy to maintain and cleaning without dead corner

After sales services

1. installation and commission at buyer's site is available.

2. documents like FAT/IQ/OQ documents in english is available

3. two years spare parts available

4. formula test in our laboratary is available

5. warranty for one year after accepted.

Technical Parameters

Name			FLP3	FLP5	FLP10	FLP15	FLP30	FLP60	FLP120
Dia of container		mm	400	600	700	800	1000	1200	1500
Productive capacity		kg/batch	0.75-3	1.2-5	2.5-10	3-15	7.5-30	15-60	30-120
Power of fan		kw	3	4	5.5	7.5	7.5	11	18.5
Steam	Pressure Mpa		0.4-0.6
	Consumptio	n m3/min	6kw	20	35	42	60	160	240
compressed air	Pressure Mpa		0.6
compressed air	Consumptio	n m3/min	0.3	0.4	0.6	0.6	0.9	1.1	1.5
Noise dB			The noise at fan separated place should be less than 75dB

Bottom Spraying 0.6Mpa Fluid Bed Granulator

Product Tags:

top spray granulation

fluid bed processor

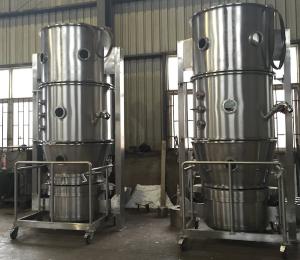

Bottom Spraying 0.6Mpa Fluid Bed Granulator Images
